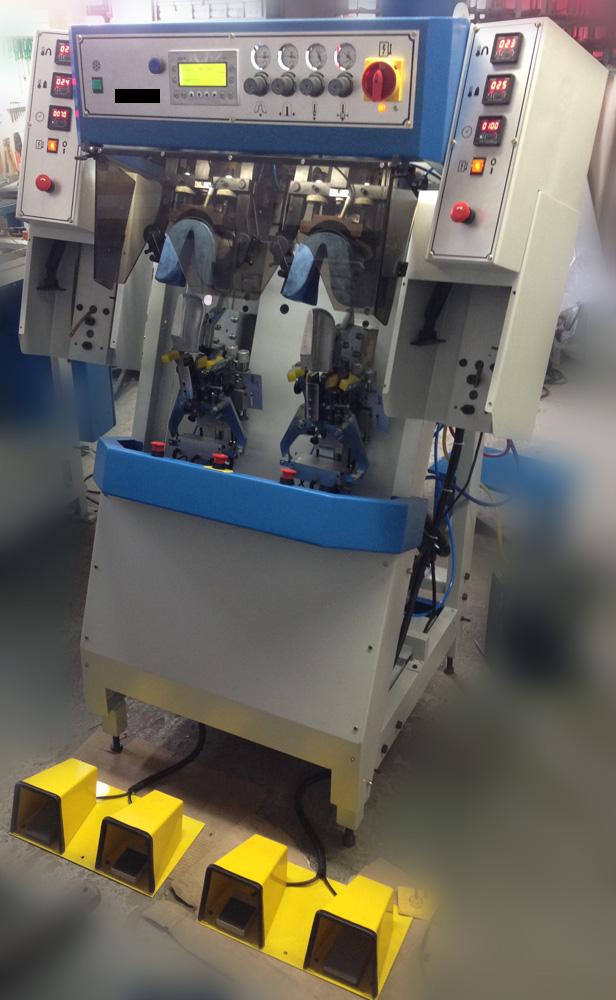

BUSM GBM – Group Back Part Moulder

busmThe original British design –
“ Re-engineered for a new era of shoe making ”

available exclusively from www.busmshoemachinery.com
email: sales@busmshoemachinery.com

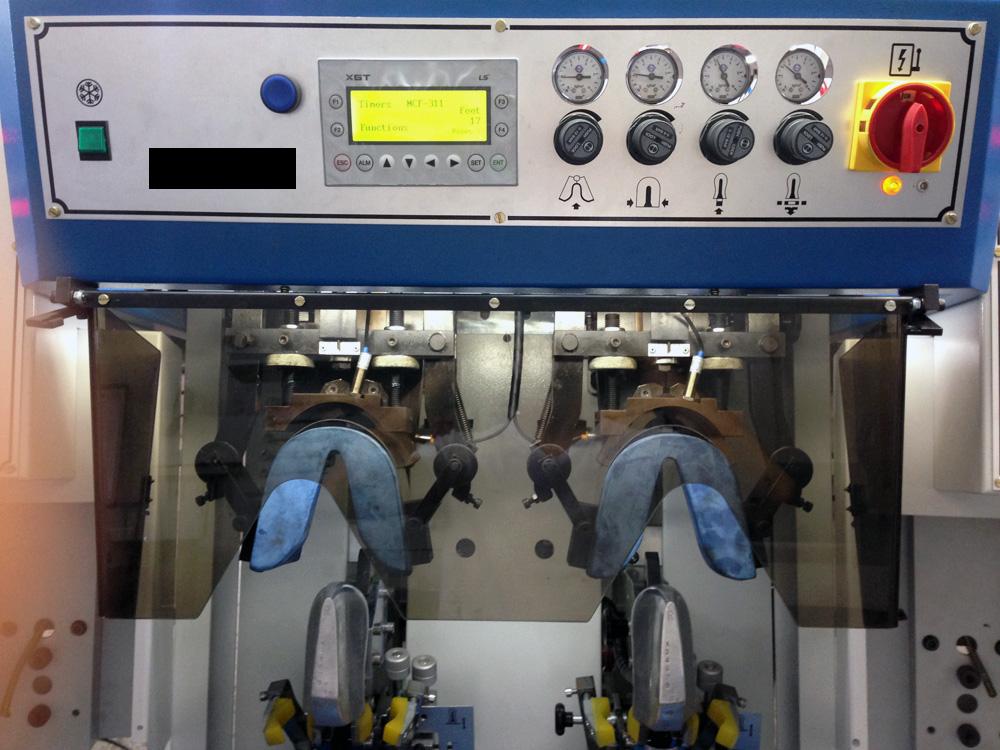

The pincers are completely adjustable to any kind of shoe according to width and centering and with a new tracking system at the shank line.
• The aluminium moulds have a high capacity cooling system, and are quickly interchangeable
• A light scale projector, ensures correct positioning of the upper on the mould.
• The wiper system has a rotating and vertical motion, to give an evenly lasted margin around the seat area .
• Equipped with R134a freon gas. Eco safe and ozone friendly.
• Laterally mounted activators have heated aluminium inner moulds
• High temperature rubber, outer moulds
• Individual temperature controls.
• Digital pair counter for better production control.
• The machine can mould shoes for children, ladies and gents. Moccasin, welted, stitch down and thermo plastic back part

860mm wide x 500mm deep x 1860mm high
450 Kgs
240V – 1 phase
